EVDC-50S-EU

EVDC-S Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • 50kW EV fast charger with 55 inch media screen
  • Share customized content applicable to your venue or to generate additional revenue
  • Dual charging ports and cables CHAdeMO and/or CCS
  • LAN, 4G and Wi-Fi connections available
  • Open Charge Point Protocol (OCPP) 1.6 or 2.0.1 support
  • Start modes include plug-n-play, RFID, QR code and optional POS
  • Designed for easy installation and maintenance
  • 50Hz, 400VAC (+/- 10%) supply input (three-phase)

Model Number:

EVDC-50S-EU

Output Power:

50kW

Output Voltage:

200 -1000V

Supply Input:

400VAC (+/- 10%) three-phase / 50Hz

Socket Type:

Dual port CHAdeMO and/or CCS (type 1 or 2)

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6 or 2.0.1

Start Modes:

Plug-n-play, RFID, QR code and optional POS

Media Screen:

55 inch (1920 x 1080 resolution)

Dimensions

Length:

25.6'' / 651mm

Width:

38.2'' / 970mm

Height:

84.3'' / 2140mm

  • 50kW EV fast charger with 55 inch media screen
  • Share customized content applicable to your venue or to generate additional revenue
  • Dual charging ports and cables CHAdeMO and/or CCS
  • LAN, 4G and Wi-Fi connections available
  • Open Charge Point Protocol (OCPP) 1.6 or 2.0.1 support
  • Start modes include plug-n-play, RFID, QR code and optional POS
  • Designed for easy installation and maintenance
  • 50Hz, 400VAC (+/- 10%) supply input (three-phase)

Model Number:

EVDC-50S-EU

Output Power:

50kW

Output Voltage:

200 -1000V

Supply Input:

400VAC (+/- 10%) three-phase / 50Hz

Socket Type:

Dual port CHAdeMO and/or CCS (type 1 or 2)

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6 or 2.0.1

Start Modes:

Plug-n-play, RFID, QR code and optional POS

Media Screen:

55 inch (1920 x 1080 resolution)

Dimensions

Length:

25.6'' / 651mm

Width:

38.2'' / 970mm

Height:

84.3'' / 2140mm

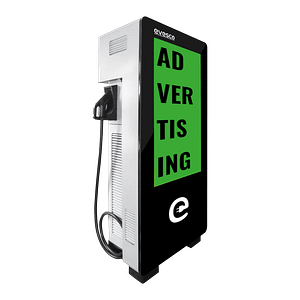

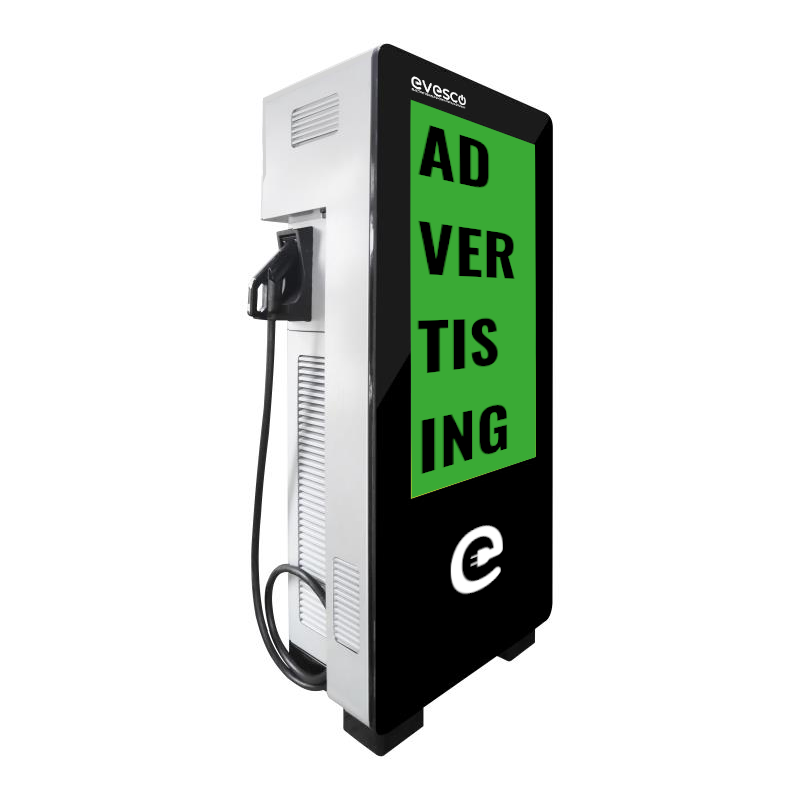

Product Image

The EVDC-50S-EU has been discontinued. The upgraded model is the EVDC-60S-EU

MODEL SUMMARY

The EVDC-S series of fast EV chargers have been designed to attract high-value electric vehicle drivers to your business. The EVDC-50S-EU is a 50kW EV fast-charging station with an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. These fast EV chargers are perfect in high traffic or footfall locations.

The 50kW fast EV charger utilizes a 400VAC (+/- 10%) three-phase input converting AC to DC within the charger resulting in faster delivery of power directly to the electric vehicle battery. DC fast chargers currently provide the quickest charging option for electric vehicles. The EVDC-50S-EU has dual charging ports and cables with CHAdeMO and CCS connectors. All EVDC-S fast chargers are supported through OCPP 1.6 or 2.0.1 (optional), enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. Additional options include POS support for credit cards giving added flexibility on usage.
