PC Series

RANGE FEATURES

  • I.C based voltage and current regulation designed for VRLA batteries
  • Useable on various input voltages from 110VAC – 60Hz to 240VAC – 50Hz
  • Automatic dual-rate charging for efficient, care free and safe operation
  • Medically certified to EN60601-1
  • Manufactured in Europe with high-quality components
  • Alligator clip connectors with insulated sleeves
  • UL and CE approved
Summary Image

RANGE SUMMARY

With proven, cutting-edge charging technology, Power Sonic are proud to offer the PC series of premium quality sealed lead acid battery chargers. The PC series are switching type chargers which operate without the use of transformers. I.C’s control and regulate current and voltage and automatically switch from the higher fast charger voltage to the lower float voltage when batteries are very close to be fully charged. At float voltage it is safe to leave the battery connected to the charger indefinitely, making battery charging pretty much fool-proof.

Opps looks like something went wrong

X

PC Series Chargers

Voltage

Weight (Kg) (Pound)

01

Height (mm) (inches)

01

Length (mm) (inches)

01

Width (mm) (inches)

01

Sort by



PSC-12100-PC

The PSC-12100-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

12V

View PSC-12100-PC

PSC-121000-PC

The PSC-121000-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

12V

View PSC-121000-PC

PSC-1210000-PC

The PSC-1210000-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

12V

View PSC-1210000-PC

PSC-122000-PC

The PSC-122000-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

12V

View PSC-122000-PC

PSC-1220000-PC

The PSC-1220000-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

12V

View PSC-1220000-PC

PSC-12300-PC

The PSC-12300-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

12V

View PSC-12300-PC

PSC-124000-PC

The PSC-124000-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

12V

View PSC-124000-PC

PSC-12500-PC

The PSC-12500-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

12V

View PSC-12500-PC

PSC-243500-PC

The PSC-243500-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

24V

View PSC-243500-PC

PSC-6100-PC

The PSC-6100-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

6V

View PSC-6100-PC

PSC-61000-PC

The PSC-61000-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

6V

View PSC-61000-PC

PSC-61300-PC

The PSC-61300-PC is part of our PC series of 3 stage switch-mode battery chargers. The PC series chargers are switching type devices which operate...

Voltage:

6V

View PSC-61300-PC
1 2

In fast charge mode voltage goes up to 2.45V +/- 0.05V before switching, in the float mode voltage is held between 2.25 – 2.30V/cell.

The PC series of battery chargers are ideal for cyclic applications where recharge time is critical and timely charge termination cannot be counted on. Our charger range ensures optimum battery performance and service life. PC float chargers are suitable for applications where recharge time is not as critical.

To ensure safe and efficient operation always refer to our Charger Operating Instructions.

Can’t find the right battery charger?
Our battery specification sheets and individual battery pages recommend the most suitable chargers to use with that particular model. If you are unsure as to which charger is the best for your charging application please contact us and our team of expert engineers will be more than happy to help. We offer durable, dependable and convenient battery chargers configured and calibrated specifically for the Power Sonic range of batteries. All of our chargers meet worldwide safety standards and are UL recognized.

Read more Read less
Brochure

DOWNLOAD THE POWER SONIC PRODUCTS BROCHURE

DOWNLOAD

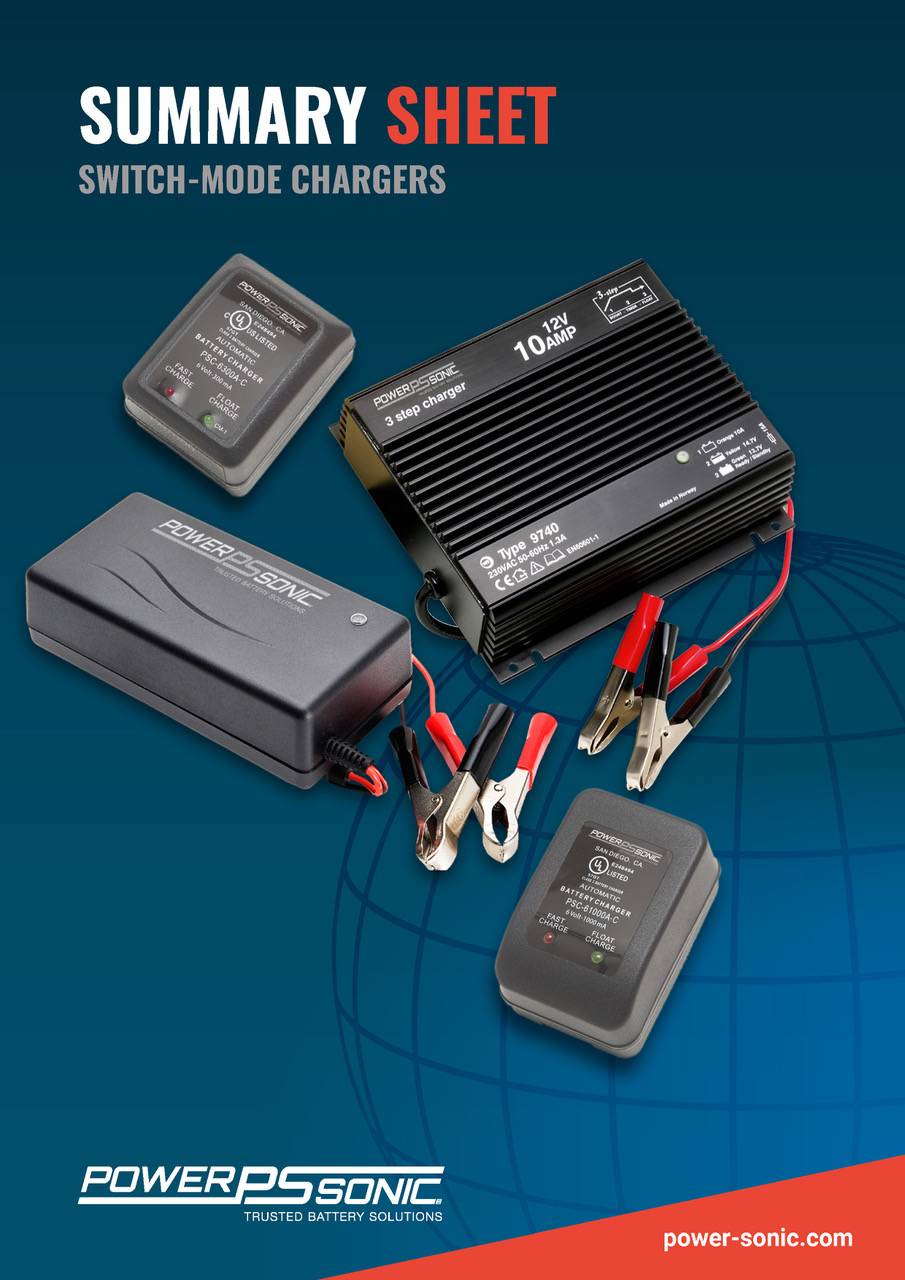

DOWNLOAD THE PC SERIES SUMMARY SPECIFICATION SHEET

DOWNLOAD
Brochure

FIND A DISTRIBUTOR

Power Sonic have a network of battery distributors throughout North America and around the world

Find my nearest distributor

Speak to an expert

If you need help selecting the right charger for your particular application feel free to contact us, we have a highly trained and qualified team of experts that will be more than happy to help you.
